Element Handling

Modutrack

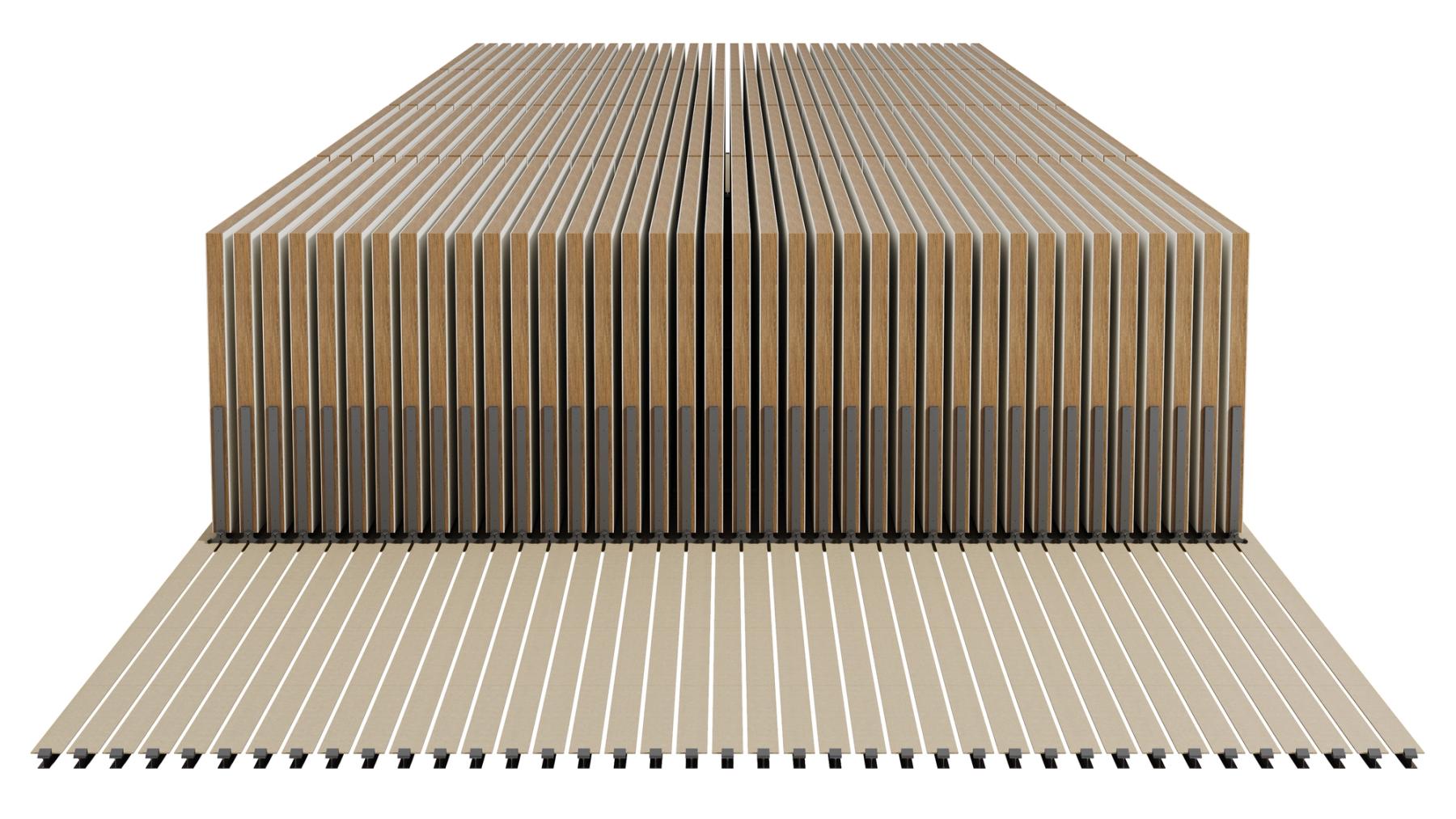

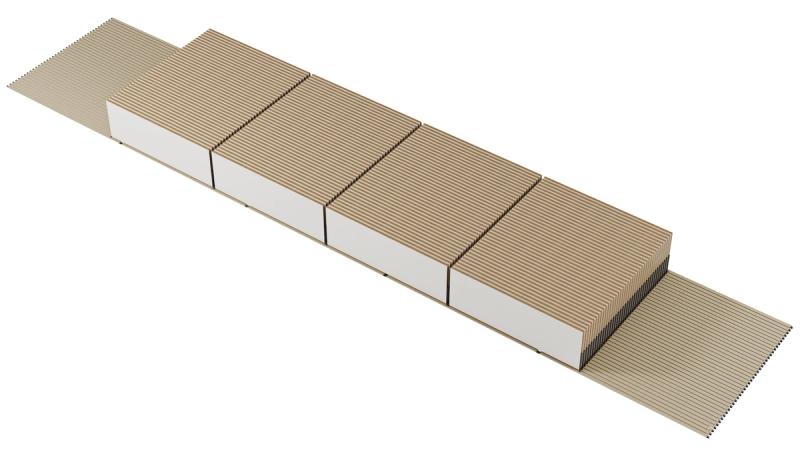

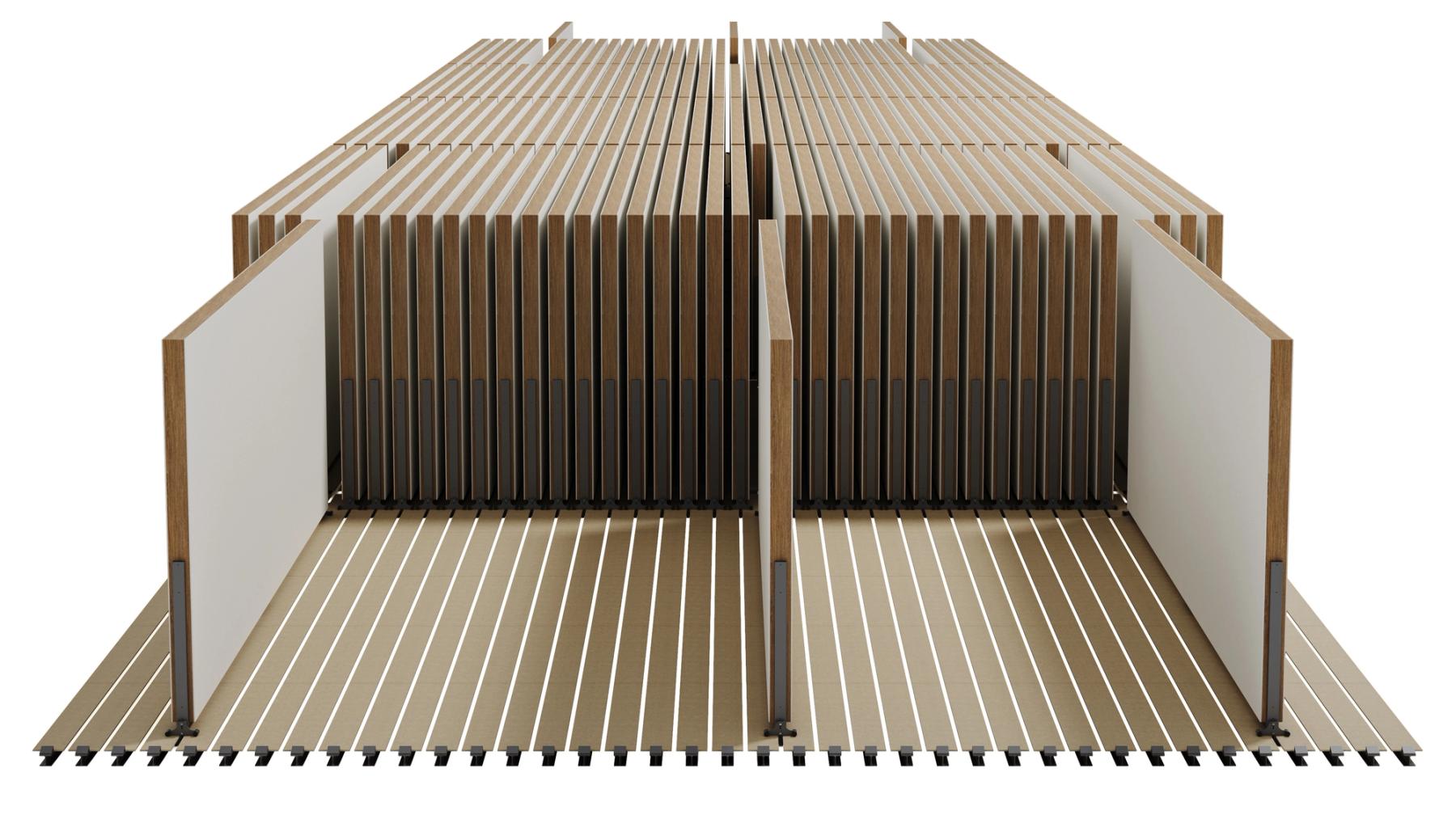

A modular track system for handling elements. Elements stand on rolling carts that move along floor tracks. The system adapts to any workflow, whether used for storage, transport, workstations, or any combination.

Product Sheet

Features

Handles all element types and sizes. Supports interior walls, exterior walls, roof elements, and more. Adjustable to different element dimensions within the same system.

Elements stay on carts throughout the flow. Placed on and removed using existing lifting equipment. No need to transfer between stations.

Manual and ergonomic. Carts roll smoothly along floor tracks, requiring minimal effort to move between stations.

Configured to your production. Capacity, layout, and station placement are tailored to each factory's production flow.

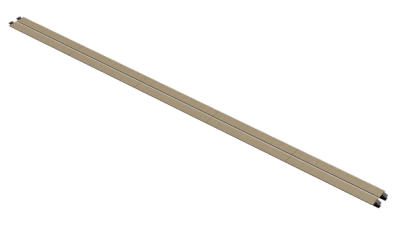

Floor Tracks Floor Tracks
Carrier Carts Carrier Carts

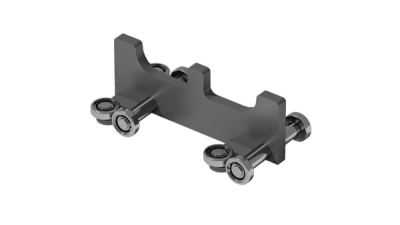

Support Rollers (added for larger or heavier elements) Support Rollers (added for larger or heavier elements)
Maximum element thickness
400 mm
Maximum element weight
3000 kg
Maximum load per carrier cart
1500 kg
Carrier carts per element
2

Interested in Modutrack?

Get in touch with us to learn how Modutrack can improve your production.
