An automatic tiling system for applying adhesive and laying tiles on wall, floor, and other elements. Handles various patterns and sizes with high precision. An optional drying station keeps tiles ready for the next production step without delays.

  • Automated tiling. Applies adhesive and lays tiles on wall, floor, and other elements, removing manual tile work from the production line. Less labor, more output, and consistent quality across every element.
  • Flexible patterns and sizes. The system supports various tile patterns and sizes.
  • Precision placement. A vision system ensures accurate tile positioning.
  • Optional drying station with 10 slots. A separate unit that dries elements so they are ready for the next production step without delays.
Modutile
Modutile

Photos

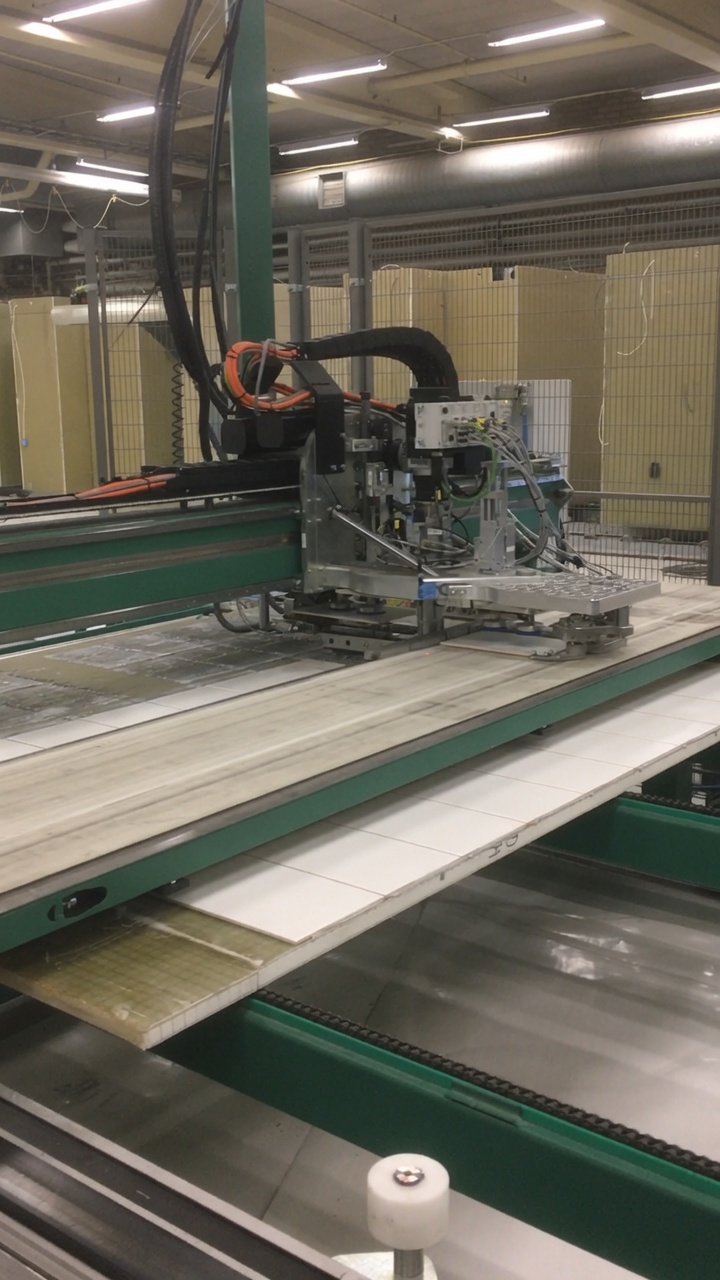

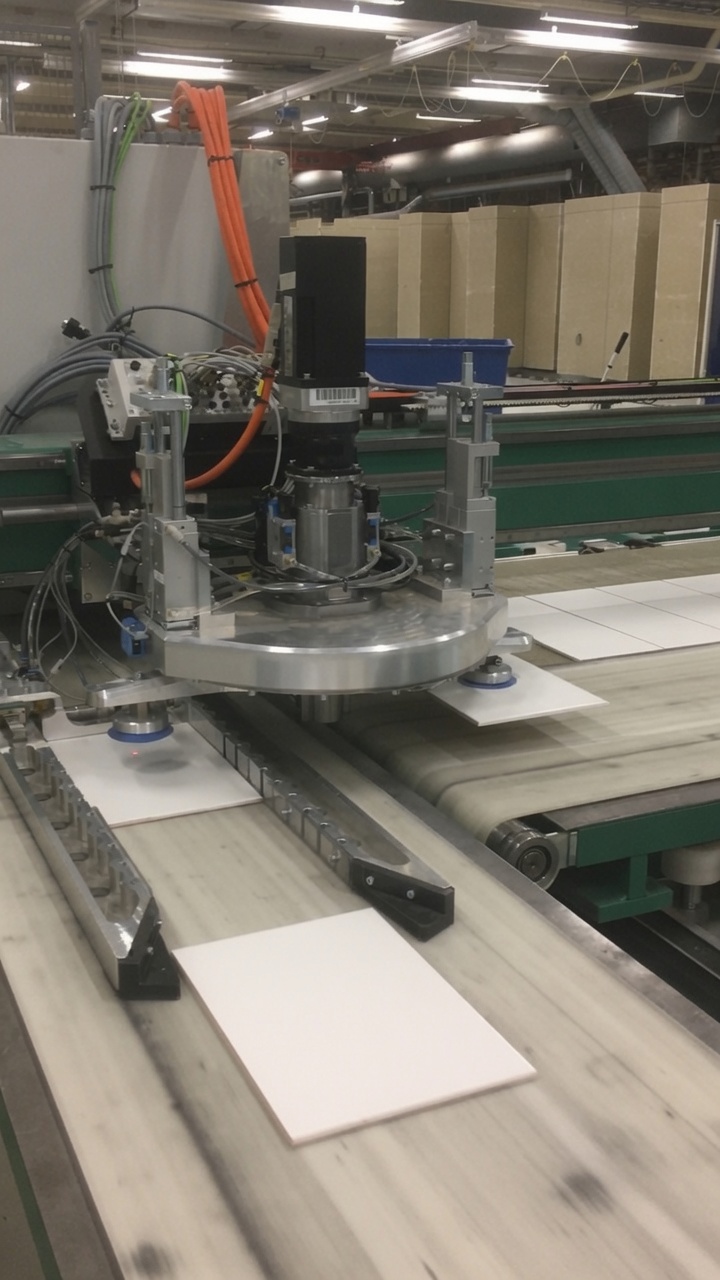

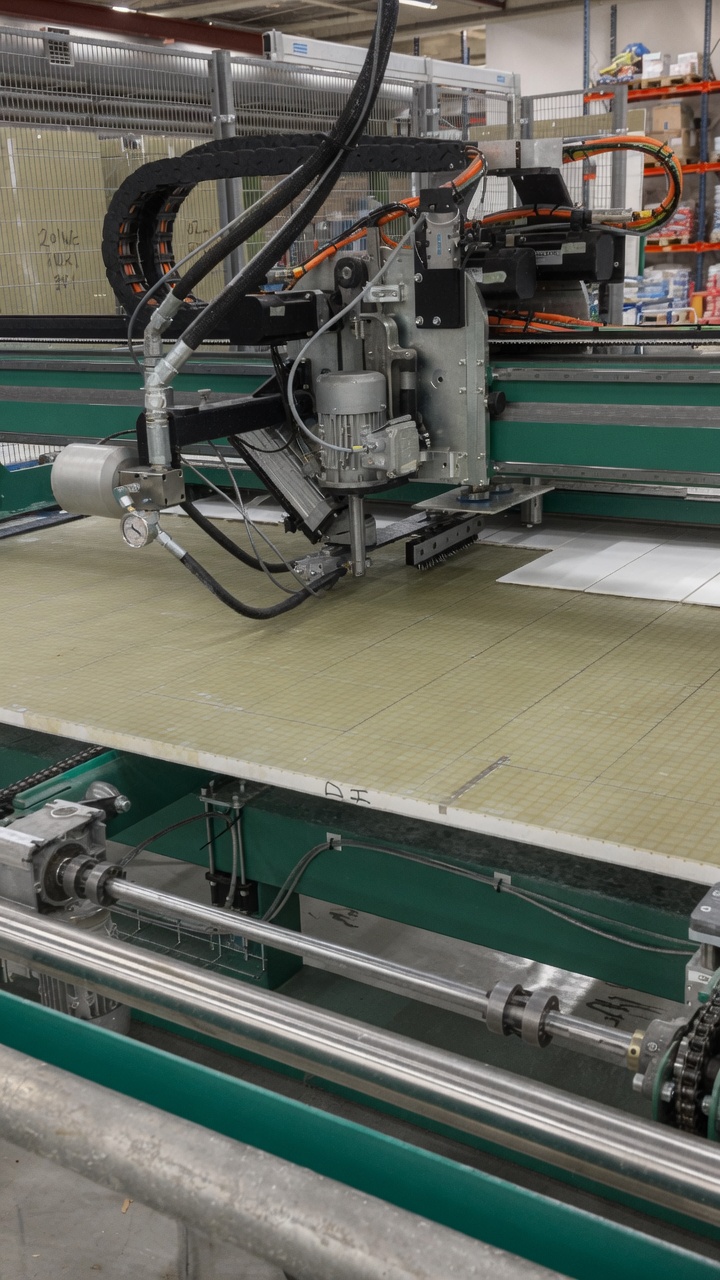

Modutile placing tiles Modutile gantry over the production line Modutile applying adhesive
Modutile

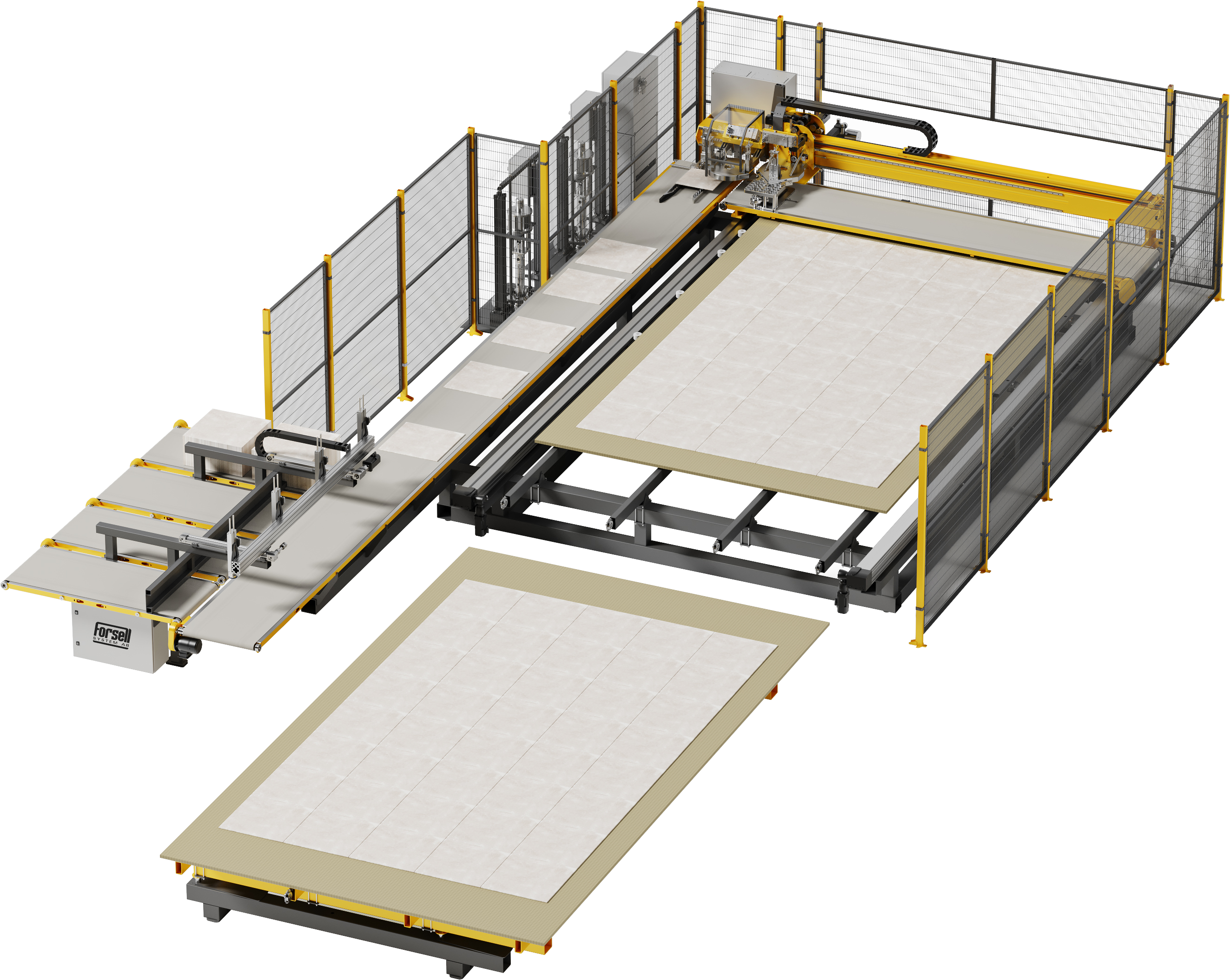

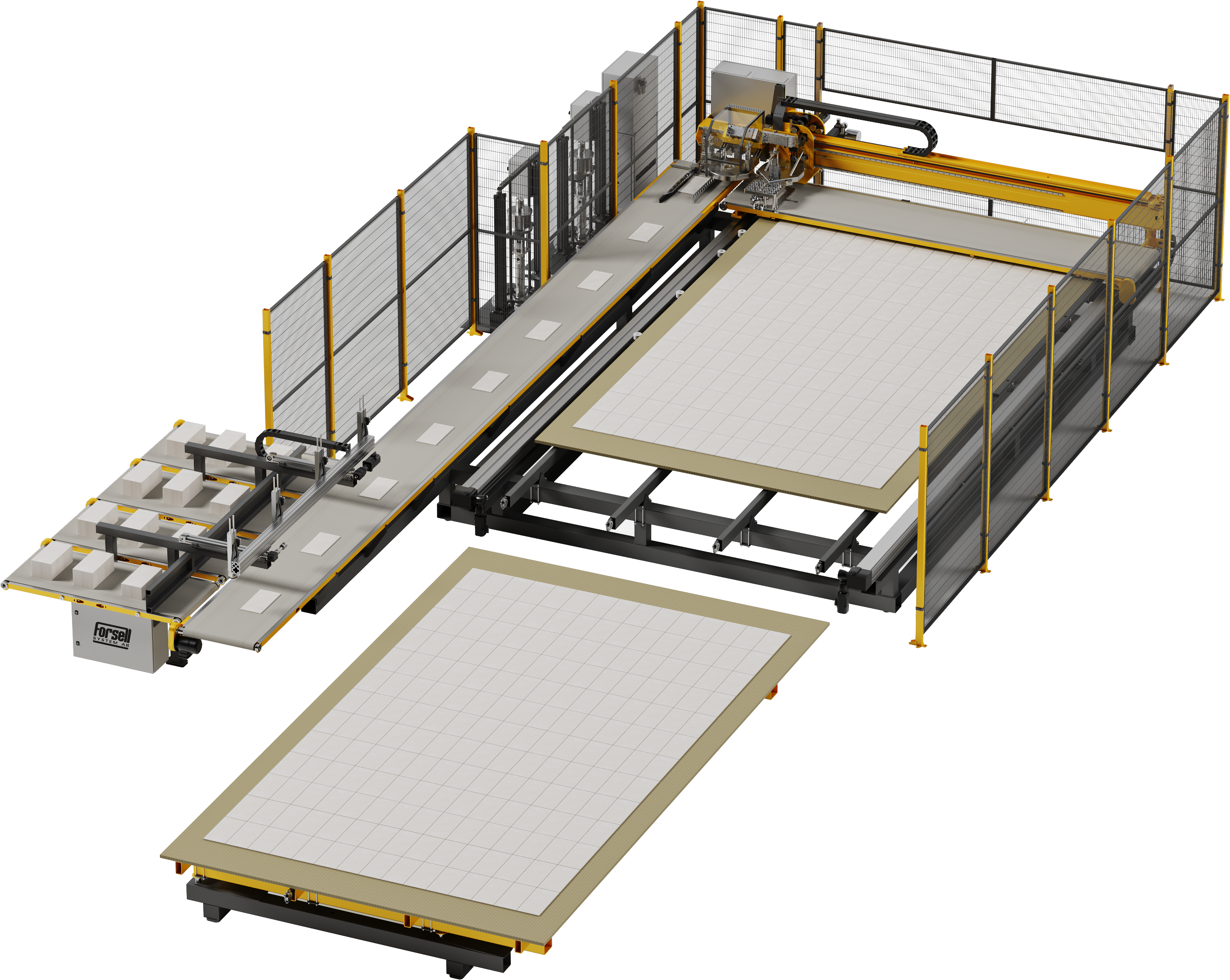

System Components

Tiling Machine Tiling Machine
Tiling Table Tiling Table
Tile Conveyor Tile Conveyor
Tile Storage Tile Storage
Inspection Table Inspection Table
Safety Fencing Safety Fencing
Adhesive Storage Adhesive Storage

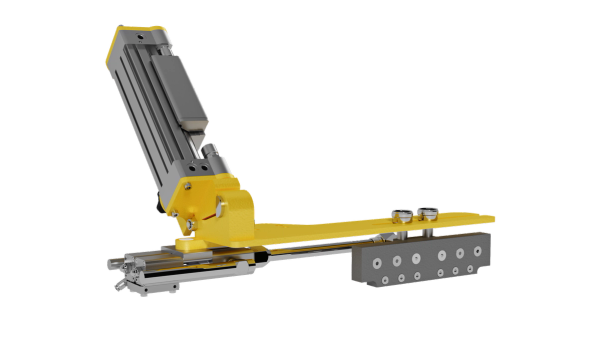

Glue Rake Glue Rake

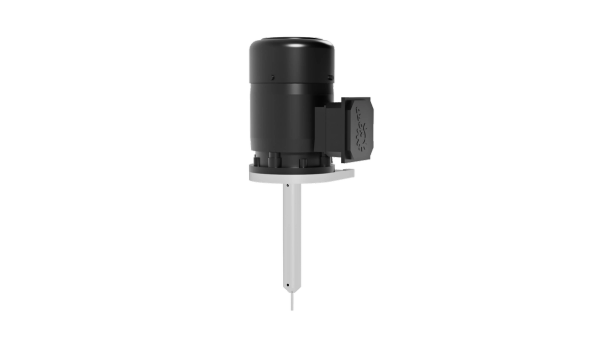

Guide Drill Guide Drill
Vision System Vision System
Drying Station Drying Station (optional)
Modutile

Cycle Times

Tile size / Cycle time per tile
100 × 100 mm2.5 seconds
200 × 200 mm3 seconds
300 × 300 mm5 seconds
Tile size / Cycle time per tile
400 × 400 mm7 seconds
500 × 500 mm9 seconds
600 × 600 mm11 seconds

Specifications

Modutile
Minimum tile size
100 × 100 mm
Maximum tile size
600 × 600 mm
Maximum element size
6000 × 3500 mm
Minimum element size
300 × 2000 mm
Maximum element thickness
400 mm
Minimum element thickness
50 mm
Maximum element weight
3000 kg
Drying Station (optional)
Number of slots
10
Capacity per slot
3000 kg
Total capacity
30 000 kg
